UN Series (Premium)– Servo Hydraulic Machine
Item No.：
M8
Category:Product category
keyword：UN M7 series
PRODUCT DETAIL
UN M8 Series

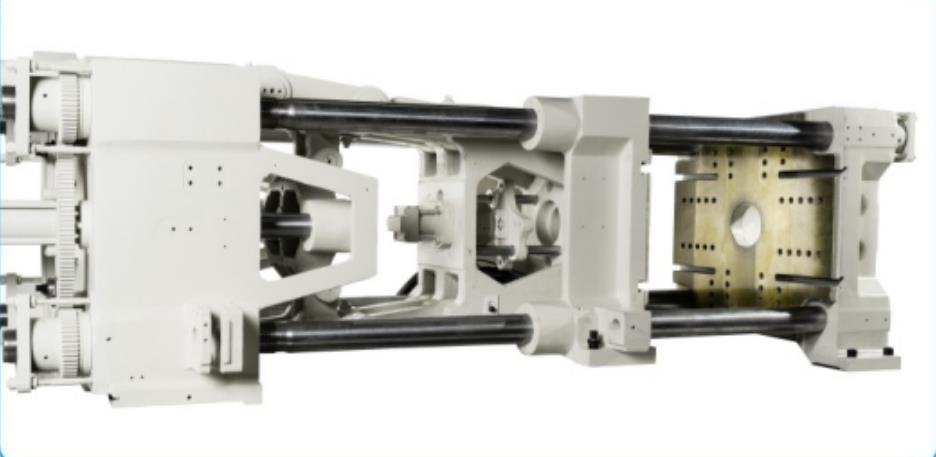

Optimized platen design,one-piece casting of toggle seat and moving
platen,one-piece casting of crosshead guide supporttoggle seat and rear platen. It not only improves the rigidity but also the accuracy of mold opening.
The injection and plasticizing systemadoptslinear quidewith high precision,high rigidity and lowfrictionprovideslow
resistance and stable movement during injection and plasticiz ing. Adjustable and sensitive,better for materials in low viscosity and requires high temperature.

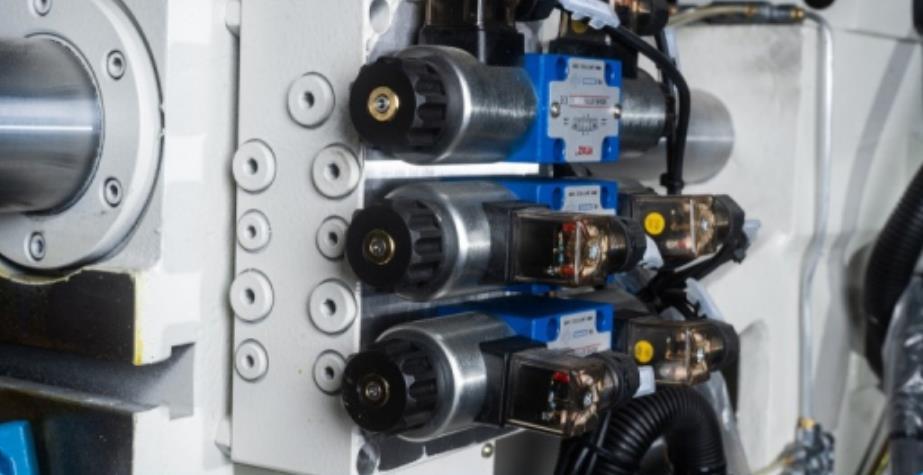

Modular energy-saving and high-response oil circuit design
Increases speed by more than 25%

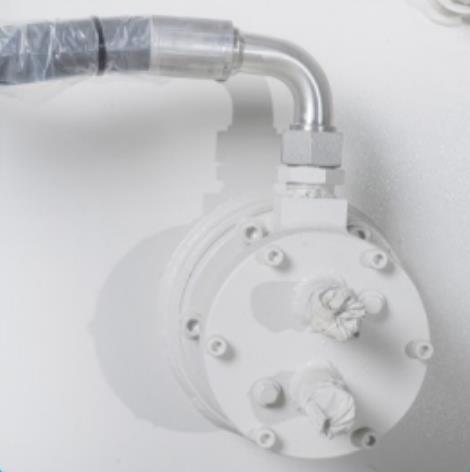

Built in high efficency oil cooler
Small volume,high cooling efficency,simple oil circuit,to guarantee stable oil temperature.

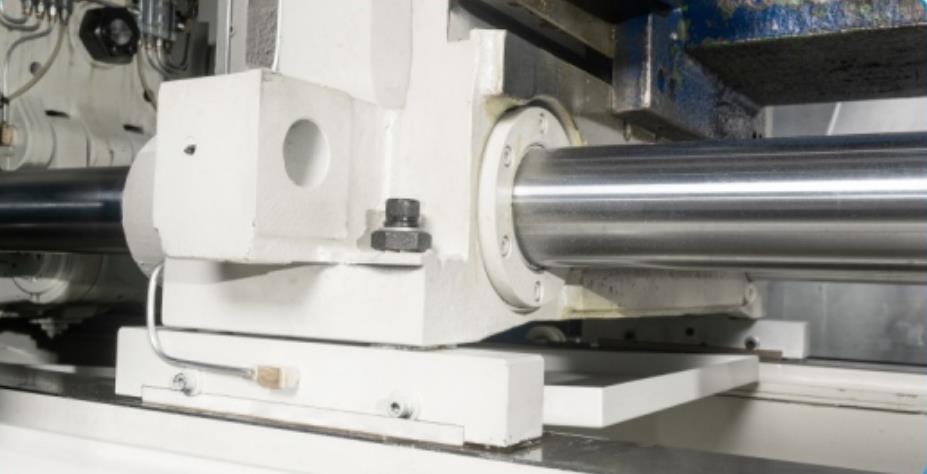

Sliding foot adopts special wear-resistant material,able to adjust the height and balance the weightdurable and clean.
Single cylinder injection high precision energy saving; High injectin speed and high pressure suitable for a wide range of raw materals and products.
Equipped with special controller for injection molding machine,adopts full digital control andmultiple CPU division processing to improve the control system execution speedand machineworking accuracy.And monitorthe production process in realtimeshowing various fault diagnosis. Able to eqiup with MES system to realize network management of production workshop
DRIVE TECHNOLOGY
equipped with high performance servo system. The output power of the servo motor changes with load, without loss of excess energy.
During pressure holding, the motor reduces the speed and theenergy consumption is extremely low. The motor does not workduring cooling and the energy consumption is zero. Improves injection accuracy while saving power, water and reducing noise. A real new revolution in hydraulic injection molding machines.
High response
Equipped with a high response servo motor and internal gear pump system,UN-M8 reaches maximum output at only 0.05s, significantly faster compared to traditional hydraulic injection molding machines, effectively shortening the cycle
High reproducibility
The precision of UN-M8 is superimposed on the precision of the internal gear pump, and form a closed loop through high sensitive pressure feedback device.The injection repeatability able to reach 3‰,which shows better injection stability than traditional hydraulic machine and the rate of qualified molding parts is increased signiticantly.
