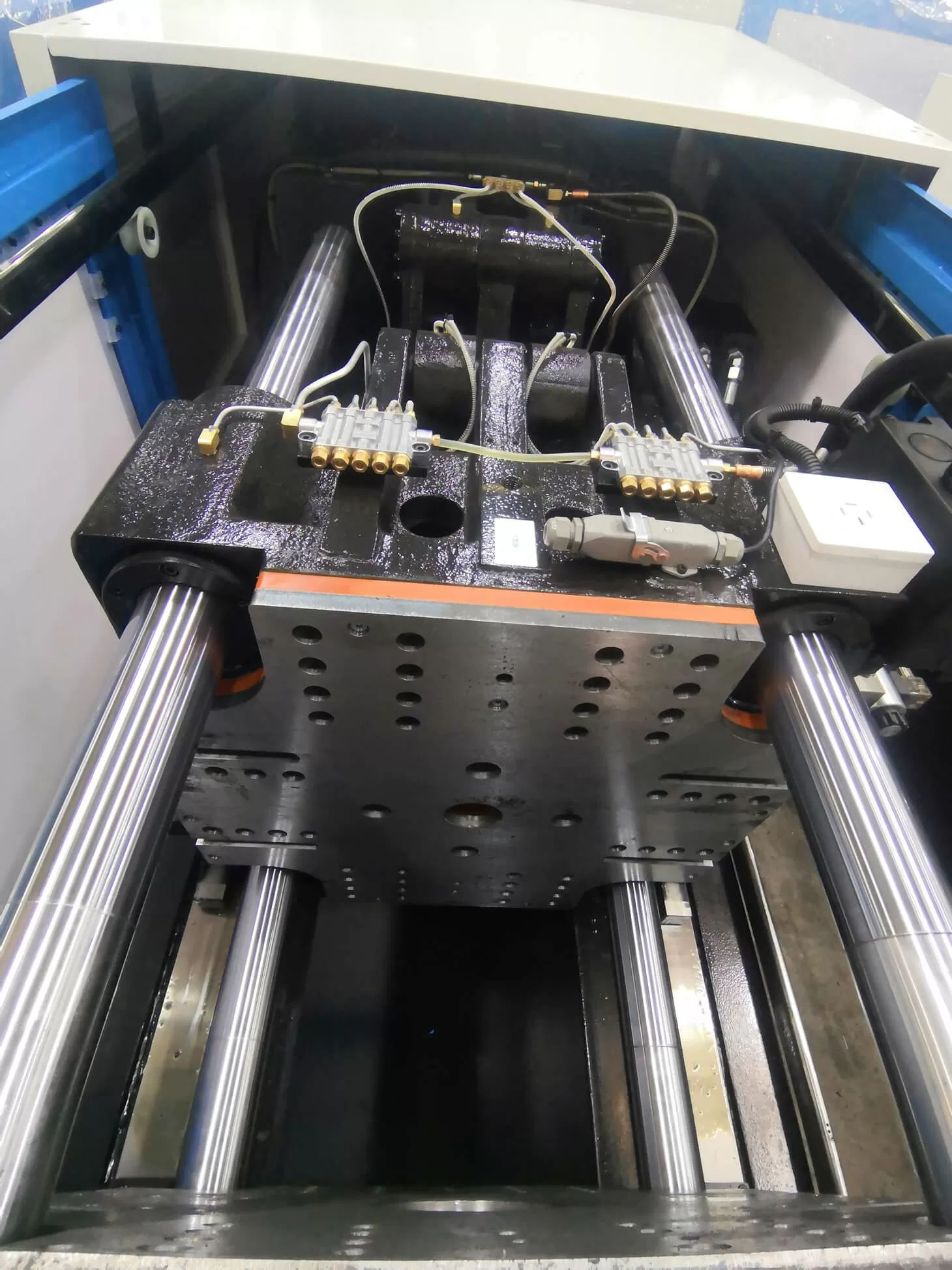

The two-way injection platform with a two-plate clamping mold structure enables forming complex multi-color products. The medium plate uses heavy-duty linear guide rails, offering 60-ton load capacity, low friction, and smooth operation.
UN

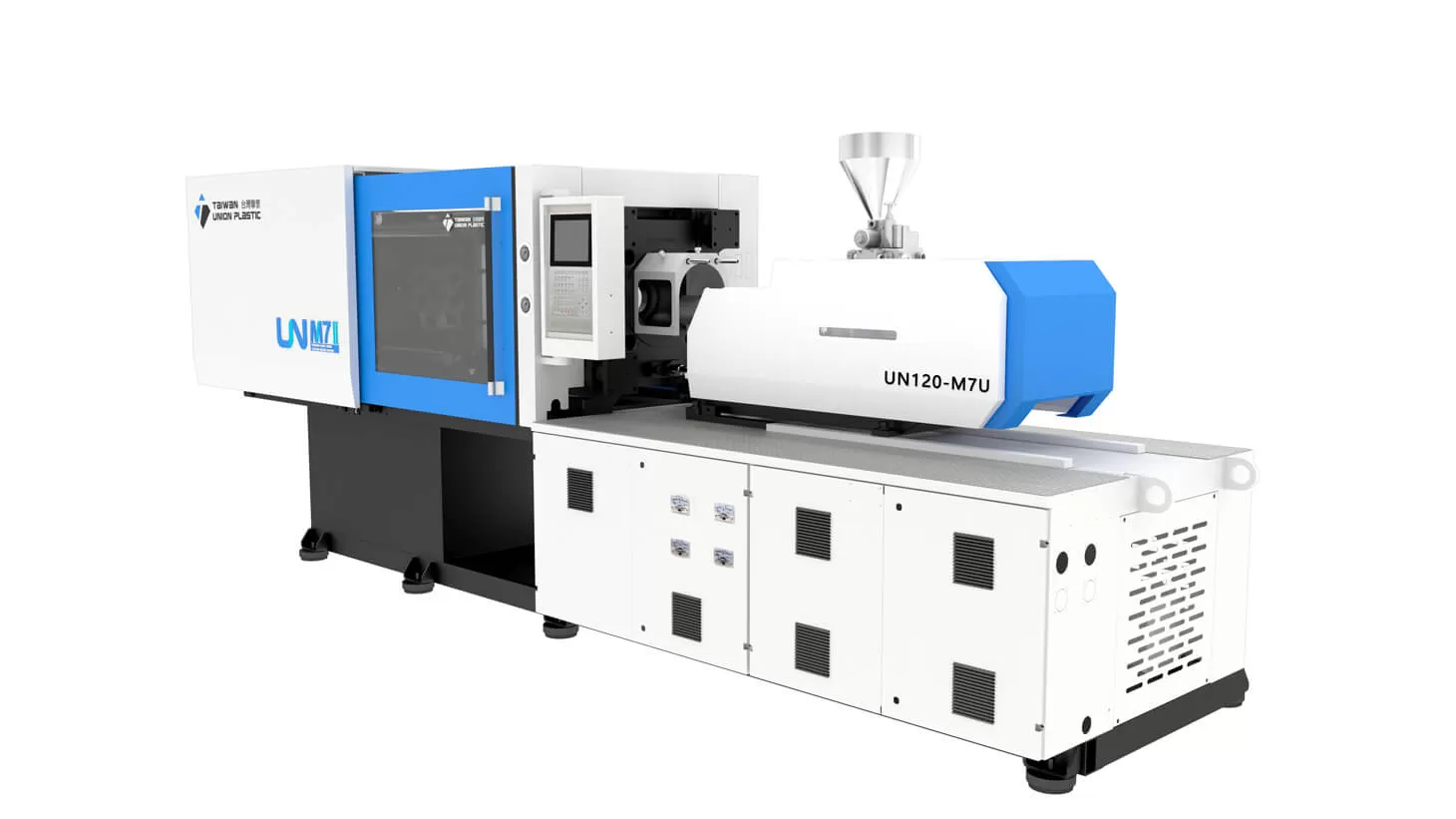

Servo Hydraulic Injection Molding Machine
1. Special Devices
Screw injection with minimal clearance of 0.5mm for easier cleaning and solidification.
Equipped with in-mold sprue cutting function to meet special requirements.
2. Barrel Temperature Measurement Technology
Built-in barrel temperature control system, real-time display of mold temperature, highly integrated machine design.

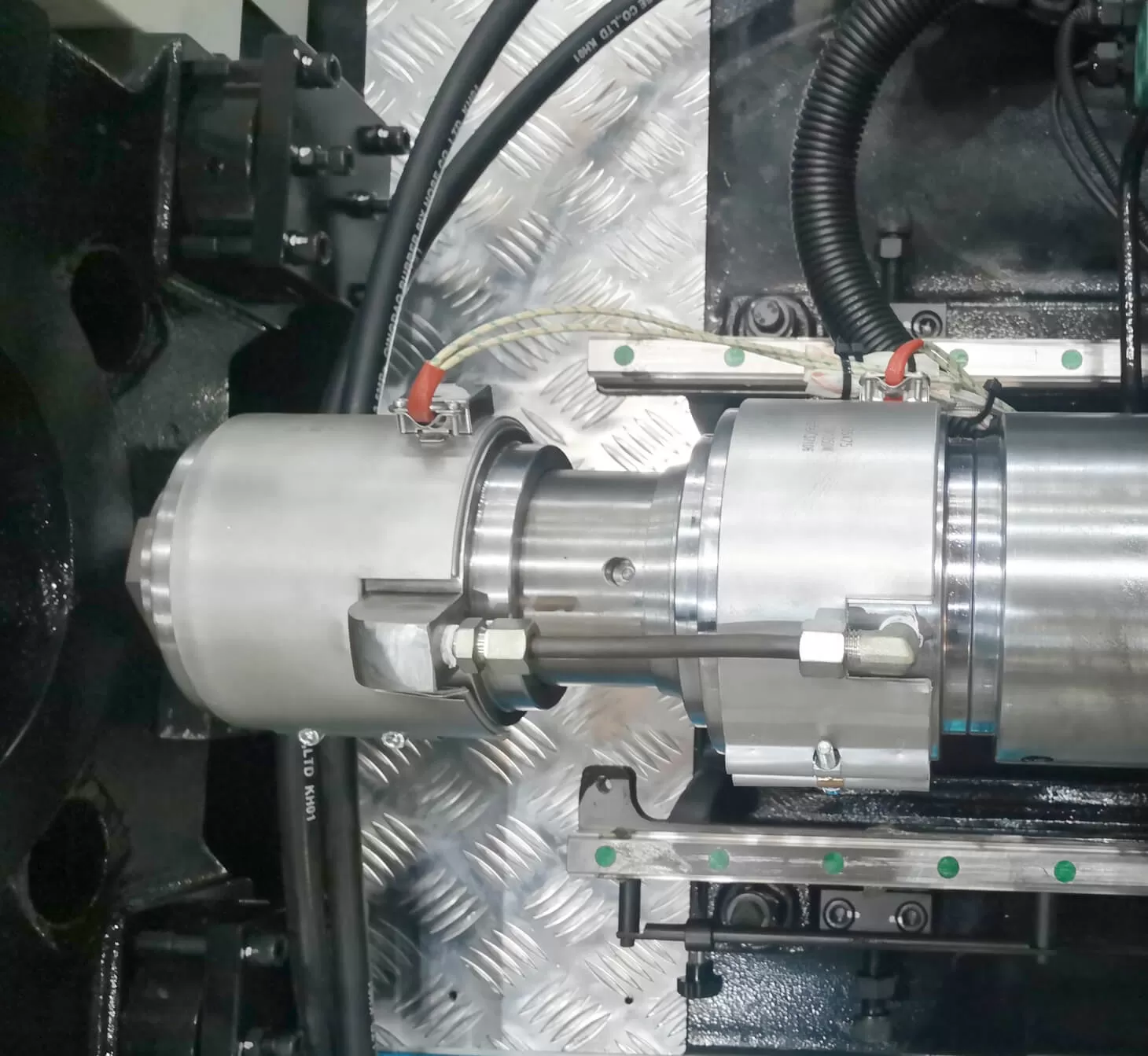

3. Special Dual-Alloy Plasticizing Cylinder
Dual-alloy plasticizing cylinder assembly specifically for bakelite materials
Integrated nozzle with welded tungsten steel head for extended service life
4. Special Oil Temperature Ring Design
Welded oil temperature ring design on the plasticizing cylinder for precise temperature control and longer lifespan.
5. Moving/Fixed Mold Insulation Plates
Configurations such as moving and fixed mold insulation plates to meet diverse application and production needs.
A thermosetting-specific servo injection molding machine, also known as a bakelite injection molding machine. The combination of resin and thermosetting plastics serves as an alternative to metals and thermoplastics. With advantages such as high strength, heat resistance, and insulation, it enables critical applications across multiple industrial fields.
1. Automotive & Aerospace
Exceptional Weather Resistance: Prevents low-temperature cracking and high-temperature softening, perfectly replacing metal/thermoplastic materials.
Common Applications: Engine components, lightweight structural parts, aerospace insulation parts, etc.
2. Medical & Food
High Safety Standards: Non-toxic, resistant to high-temperature sterilization, odorless.
Common Applications: Surgical instrument handles, coffee machine parts, baking trays, etc.
3. Home & Living
Multiple Performance Advantages: Heat-resistant without deformation, thermal insulation, water-resistant.
Common Applications: Pot handles, tableware, bathroom fixtures, fire-resistant switch panels, etc.

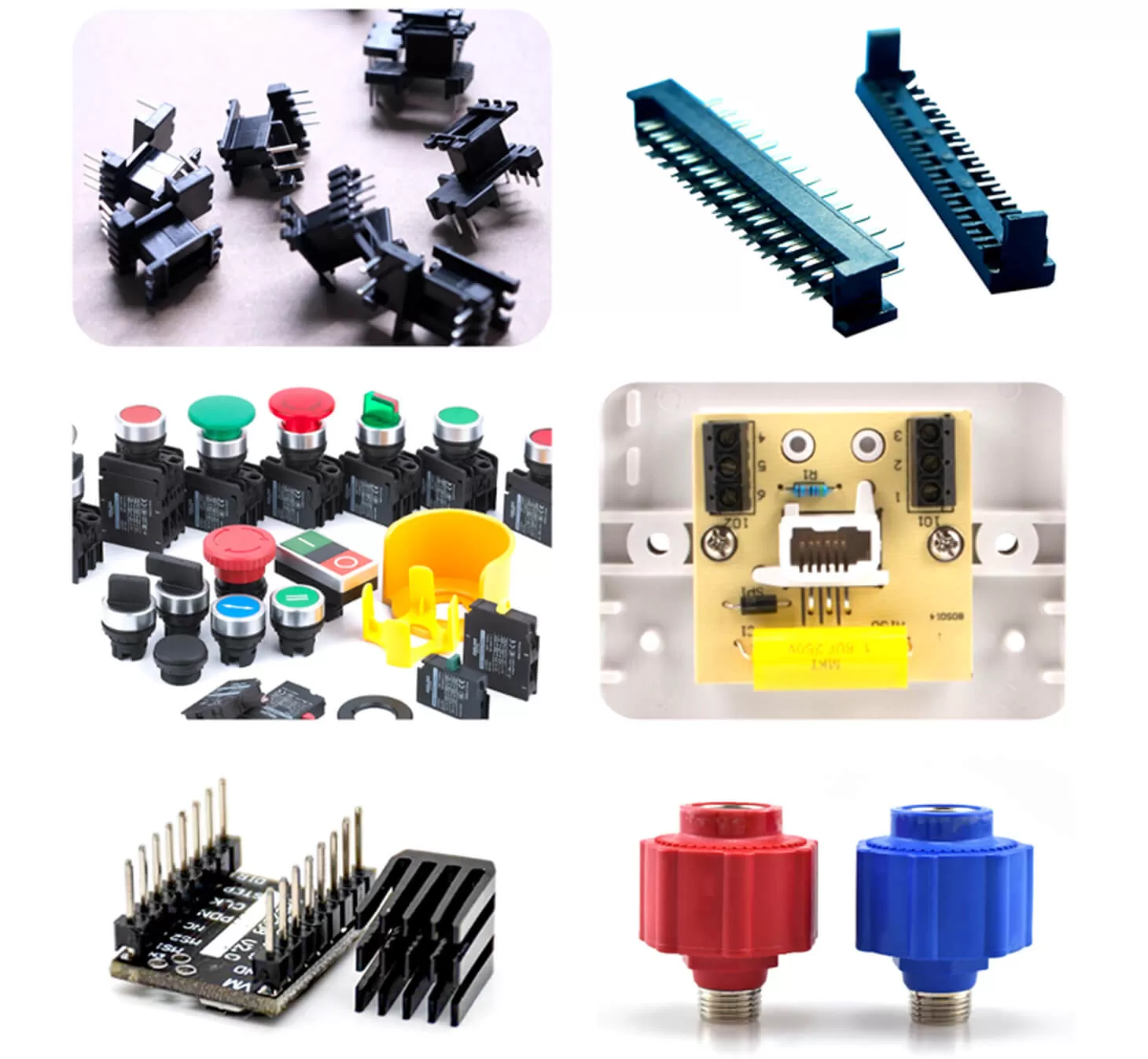

4. Electronics & Electrical
High Insulation: High insulation strength, arc resistance, welding resistance, heat resistance.
Common Applications: High-voltage insulators, electrical housings, circuit board brackets, etc.
5. Machinery
Strong Mechanical Performance: Capable of bearing certain loads and friction, wear-resistant.
Common Applications: Gears, motor housings, chemical pump impellers, etc.
