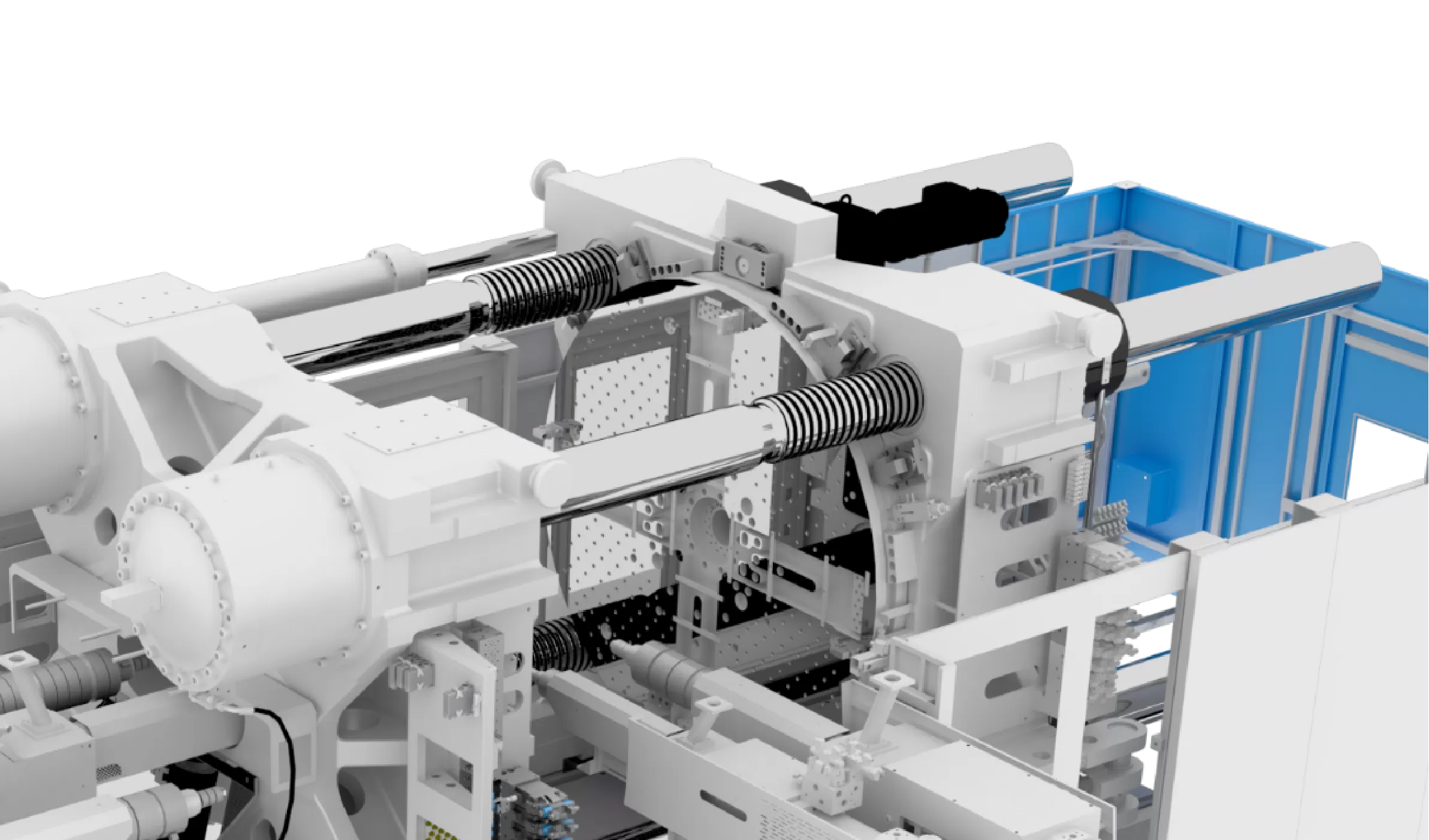

Highly rigid molds, with uniform force distribution; high-pressure mold-locking hydraulic cylinders, with locking position accuracy of ±0.2mm
Independent control of servo hydraulic system, energy-saving effect improved by 20%
High-torque glue-mixing motors, suitable for various automotive parts, household appliances and other large-scale product production processes
Multi-action synchronization, shortening the cycle time
European imported controllers and independently developed TUP software, fully optimizing machine operation, control and molding

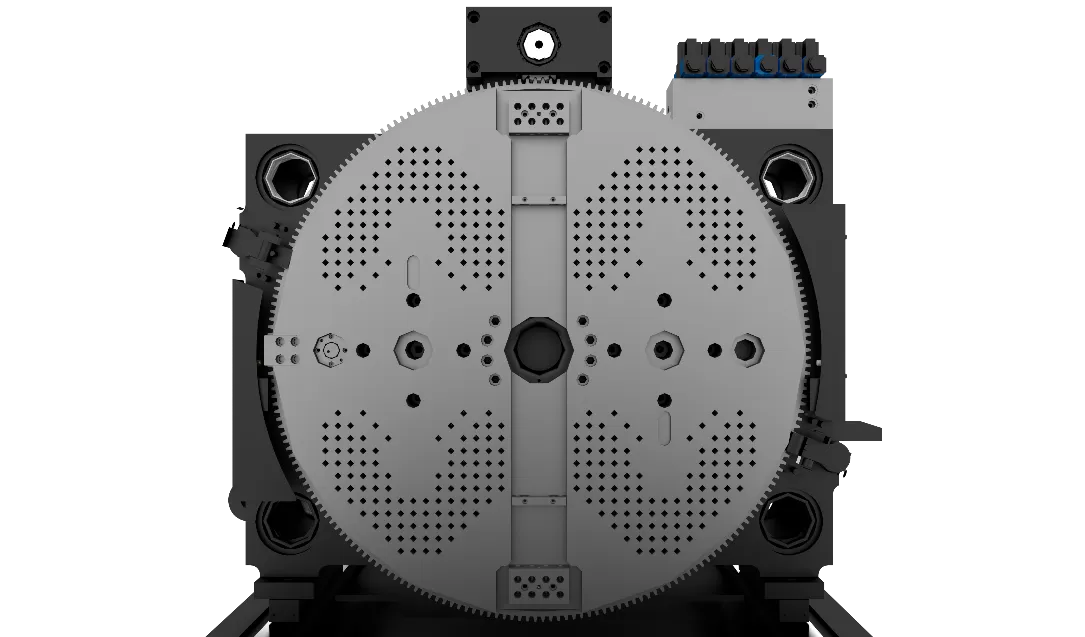

The servo motor controls the 180° forward and reverse rotation of the turntable, and jointly positions the positioning cylinder to further control the accuracy of the turntable.
A pusher device is set on the back of the turntable to reduce the contact friction between the turntable rotation and the moving template.
The turntable gear is built-in, which increases the size of the mold installation surface and is suitable for a wider range of mold installations.
The TUP multiple turntable patent devices are configured to prevent common problems such as the turntable tilting under heavy load.
The injection and plasticizing system adopts linear guide rails with low friction coefficient.
The high rigidity single-cylinder injection structure and low inertia actuator design ensure fast response and high precision.

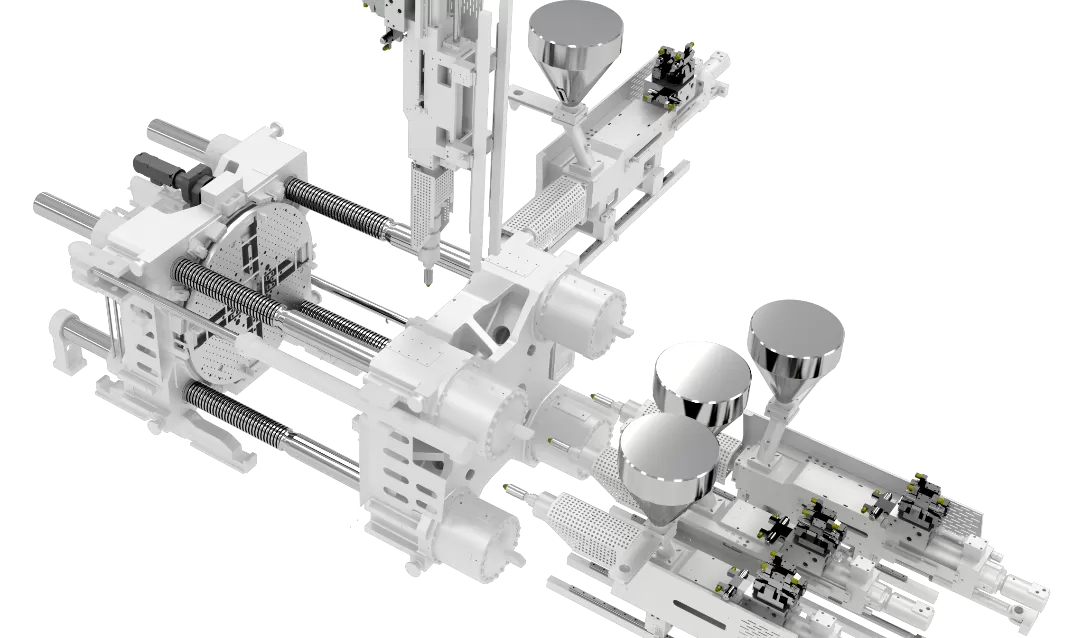

The flexible center distance structure can be combined with multi-angle injection stations to meet diverse and personalized requirements.
